TP-Link VIGI NVR2016H 16 Channel Network Video Recorder
Advanced 16 Channel Network Video Recorder Elevating Security Monitoring The VIGI NVR2016H is TP-Link's latest innovation in surveillance technology. This 16-channel network video recorder brings...
Description
Advanced 16 Channel Network Video Recorder
Elevating Security Monitoring
The VIGI NVR2016H is TP-Link's latest innovation in surveillance technology. This 16-channel network video recorder brings a new level of clarity and efficiency to security monitoring, ideal for businesses seeking comprehensive and reliable surveillance solutions.
Key Features
- 4K HDMI Video Output & 16MP Decoding Capacity: Offers sharp image definition up to 8MP. Enjoy live view and playback of more channels simultaneously (8-ch@2MP).

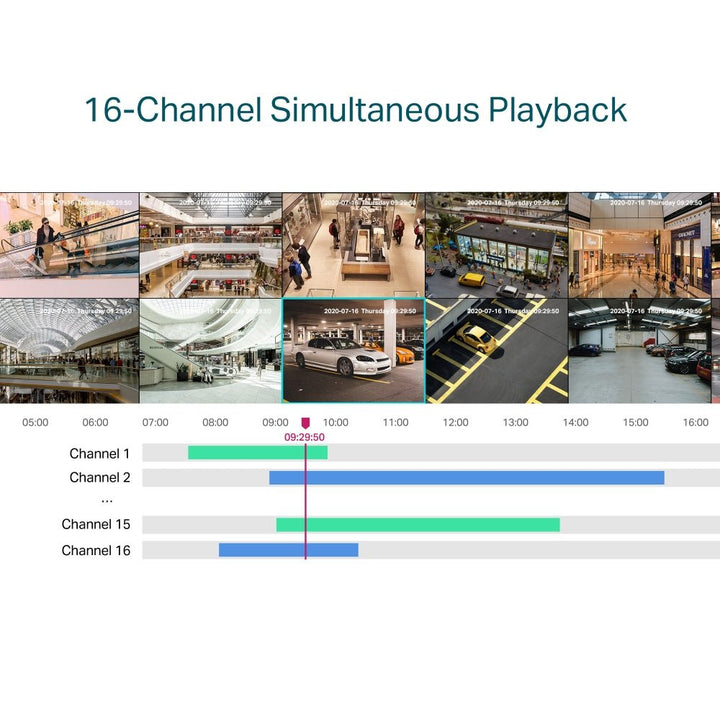

- 16-Channel Simultaneous Playback: Enhance your surveillance efficiency with the ability to replay feeds from up to 16 cameras simultaneously.
- H.265+ Technology: Achieves superior video compression, reducing file size without compromising video quality, easing network loads and saving disk space.
- ONVIF Compatibility: Seamlessly integrates IPCs from VIGI and other brands, ensuring a diverse and powerful network.
- Plug & Play Functionality: Simplifies installation by automatically adding and activating new, unused VIGI IP Cameras.
- 24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days), ensuring round-the-clock security.
- Two-Way Audio: Offers voice intercom support to deter potential threats remotely.
- Remote Monitoring: Access and control your surveillance system through the dedicated VIGI app and client.
Enhancing Surveillance Efficiency
- 4K Video Quality: Capture every detail with crystal-clear 4K imaging.
- Smart Video Coding: Utilizes advanced coding technologies like H.265+, H.265, and H.264 to balance quality and storage efficiency.
- Security That Never Sleeps: Continuous 24/7 recording guarantees that no moment is missed.
- Convenient Remote Management: Stay connected and in control from anywhere using the VIGI app and Security Manager.
Comprehensive Security Solution
The VIGI NVR2016H is more than just a video recorder; it's a complete surveillance solution designed to safeguard your business. With its advanced features and user-friendly interface, it's the perfect choice for those who value security and efficiency.
Note: The actual shipped product may vary and does not include camera and EAP equipment.
Specs
| Specification | Details |
|---|---|
| NETWORK | |
| Protocol | UPnP (Plug and Play), NTP (Network Timing) |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF, CGI |
| GENERAL | |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Contents | VIGI Network Video Recorder, Power Adapter, HDD Screws, Mouse, Quick Installation Guide |
| Working Temperature | NVR: -10–55 °C, Power Adapter: 0–40 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions (W x D x H) | 330 × 285 × 45 mm |
| Net Weight | 1.9 Kg |
| Gross Weight | 3.2 Kg |
| Power Supply | 12V DC/3.3A |
| Power Consumption | 4.78 W (Without Disk), 24.16 W (With Disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |

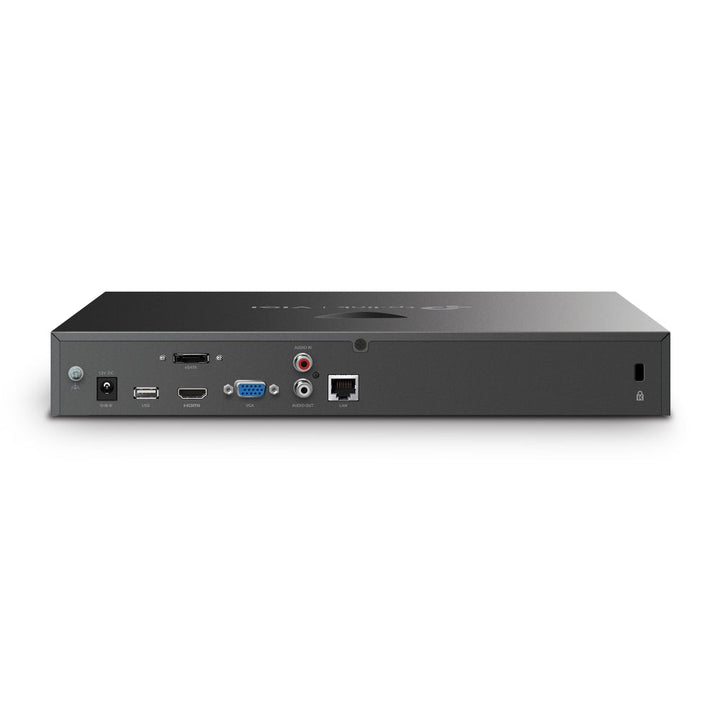

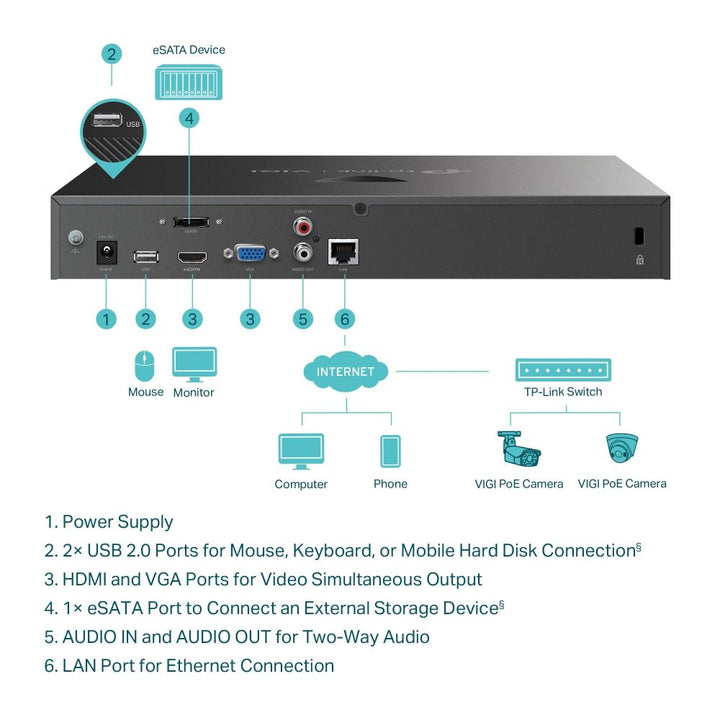

| EXTERNAL INTERFACE | |
| Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
| Audio Interface | 1, Audio In; 1, Audio Out |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | 1 |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
| SATA | 2 SATA Interfaces |
| Capacity | Up to 10 TB Capacity for Each HDD |
| ALARM | |
| General Alarm | Motion Detection, Video Tampering, Line-Crossing Detection, etc. |
| Anomaly Alarm | Video Loss, Offline and IP Conflict, Disk Exception, etc. |
| Alarm Linkage | Recording, White Light Alarm, Buzzer, Log, Audible Alarm |
| RECORD MANAGEMENT | |
| Record Mode | Manual Recording, Scheduling Recording, Motion Detection Recording |
| Playback Mode | Instant Playback, Regular Playback, etc. |
| Backup Mode | Regular Backup, Video Clip Backup |
| Playback Function | Play, Pause, Stop, Fast Forward, etc. |
| VIDEO AND AUDIO | |
| IP Video Input | 16-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 3840x2160/30Hz, 1920x1080/60Hz, etc. |
| VGA Output Resolution | 1920x1080/60Hz, 1680x1050/60Hz, etc. |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4/6/8/9/16 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel |
| Capability | 25fps: 2-ch @ 8MP, 4-ch @ 4MP, etc. |
